Working Principle of PWM and MPPT Solar Charge Controllers

Mastering the principles of PWM and MPPT solar charge controllers allows you to choose the controller that best fits your solar system. Feel free to contact our professional solar experts at any time for help and answers to your questions. This article will provide a detailed introduction to the working principles and differences of PWM and MPPT solar charge controllers.

Working Principle of PWM Solar Charge Controllers

PWM (Pulse Width Modulation) solar charge controllers are current-controlled devices that regulate the input current of the photovoltaic array using a PWM pulse mode. When the battery approaches full charge, the pulse width shortens, reducing the inflow of current and preventing overcharging.

Pulse Width Modulation (PWM) refers to the digital output of a microprocessor-controlled analog circuit, which is a digital encoding method for analog signal levels. By digitally controlling the analog circuit, system costs and power consumption can be greatly reduced. Many microcontrollers include PWM controllers, enabling efficient power conversion.

Sinusoidal Pulse Width Modulation (SPWM) is characterized by unequal output pulse widths, which vary according to sine rules, making the output waveform close to a sine wave. The key to this technology is generating pulse widths based on control signals to optimize power output.

With the above introduction, we now have a clear understanding of the working principles of the PWM solar charge controller. Next, we will introduce the working principles of MPPT solar charge controllers.

Working Principle of MPPT Solar Charge Controllers

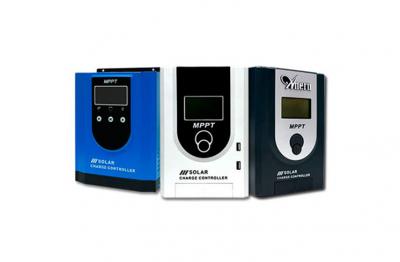

MPPT (Maximum Power Point Tracking) solar charge controllers are advanced controllers that continuously adjust the operating point of the photovoltaic array, ensuring it always operates at the maximum power point, thereby improving the overall efficiency of the photovoltaic system.

The working principle of MPPT controllers is to monitor the output voltage and current of the solar modules in real-time, calculate their power, and determine if it is at the maximum power point. If not at the maximum power point, the controller adjusts the PWM duty cycle, changes the charging current, and resamples and judges until the maximum power point is reached.

This optimization process ensures that the solar cells always operate in the best state, thereby making full use of the output energy of the photovoltaic array. MPPT controllers use intelligent calculation and tracking to monitor the voltage generated by the solar panels in real-time and output the highest point of electrical energy, charging the battery with the highest efficiency.

Difference Between PWM and MPPT Solar Charge Controllers

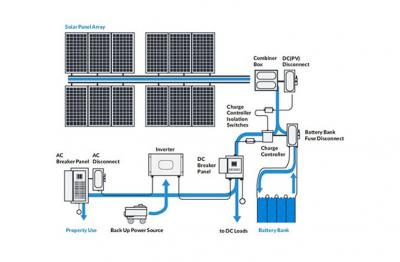

In off-grid solar systems, the solar charge controller is a key device to protect the battery from overcharging and discharging, thereby extending the battery life. After years of development, PWM charging controller technology has matured. However, in actual applications, the power generation of solar power stations is often lower than the design value, which not only results in system waste but also brings many inconveniences to applications.

The MPPT solar charge controller can effectively solve these problems. They increase power generation without significantly increasing system cost. Additionally, MPPT controller operating parameters can be dynamically adjusted according to changes in solar radiation, ambient temperature, and humidity, fully utilizing solar energy and avoiding waste.

Under the same conditions, MPPT solar charge controllers have a power generation efficiency about 20% higher than PWM controllers. In systems using PWM controllers, the lower the voltage of the photovoltaic array, the higher the photovoltaic power generation. However, MPPT controllers can optimize the output of the photovoltaic array under various conditions.

In conclusion, PWM and MPPT solar charge controllers each have their own advantages and disadvantages. PWM controllers are cost-effective and suitable for cost-sensitive projects. In contrast, MPPT controllers, despite having a higher cost, can significantly improve system efficiency, making them suitable for projects aiming to maximize energy utilization. When selecting a solar charge controller, you should choose the most suitable type based on specific application needs and budget. With proper configuration and selection, you can significantly enhance the performance and reliability of the solar system.
