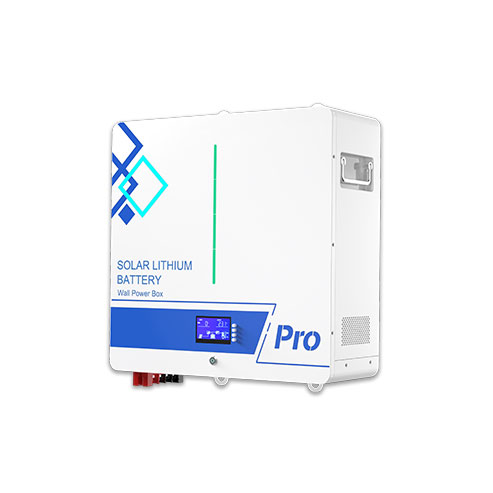

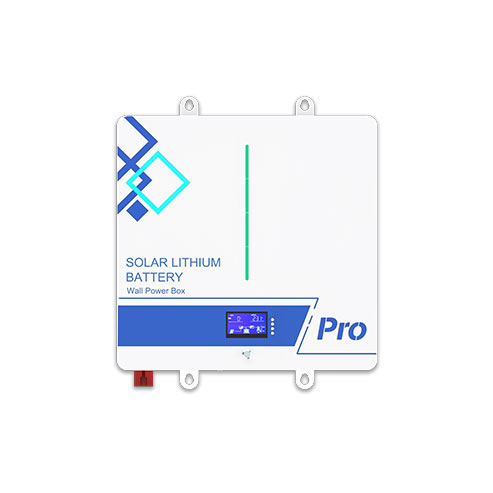

The 200Ah LiFePO4 battery from Anern is a high-performance energy storage solution designed for both residential and commercial applications. Built with LiFePO4 technology, it offers exceptional cycle life, providing over 3,000 charge and discharge cycles, making it one of the most durable and efficient batteries available. The LiFePO4 200Ah battery can ensure reliable power storage for solar systems, backup power solutions, and off-grid applications. This 200Ah lithium battery is compact, safe, and easy to integrate, delivering superior energy efficiency and long-term performance, perfect for those seeking sustainable and scalable energy solutions.
| Model | AN-LPB-N-24200 | AN-LPB-N-48200 | AN-LPB-N-48200 | AN-LPB-R-24200 | AN-LPB-R-48200 | AN-LFP12200 |

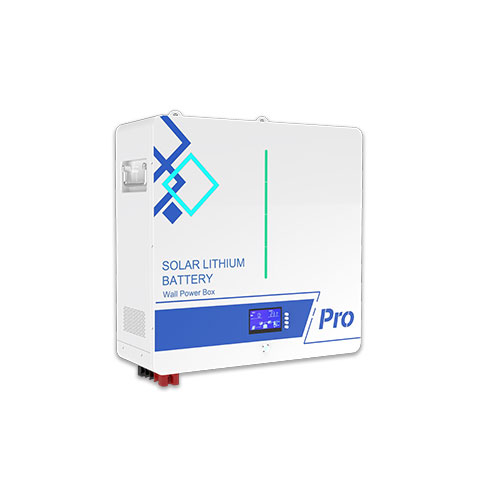

| Product Name | AN-LPB-Npro Series 24V200AH-48V100AH Wall-mounted Lithium Battery | AN-LPB-Npro Series 48V200AH Wall-mounted Lithium Battery | AN-LPB-N Series Wall-mounted Lithium Battery 51.2V200AH | AN-LPB-R Series Rack Type Lithium Battery 25.6V200AH | AN-LPB-R Series Rack Type Lithium Battery 48V100AH 48V200AH | AN-LFP Series Lithium Battery 12.8V200AH |
| Battery Type | LiFePO4 | LiFePO4 | LiFePO4 | LiFePO4 | LiFePO4 | LiFePO4 |
| Typical Capacity (AH) | 200AH | 200AH | 200AH | 200AH | 200AH | 200AH |
| Typical Voltage (V) | 25.6V | 51.2V | 51.2V | 25.6V | 48V | 12.8V |
| Energy Storage (Kwh) | 5.12Kwh | 10.24Kwh | 10.24Kwh | 5.12Kwh | 9.6Kwh | 2560WH |
| Working Temperature (℃) | Charge: 0-+55℃ Discharge: -20-+60℃ | Charge: 0-+55℃ Discharge: -20-+60℃ | Charge: 0-+55℃ Discharge: -20-+60℃ | Charge: 0-+55°C Discharge: -20-+60°C | Charge: 0-+55°C Discharge: -20-+60°C | Charge: 0-+55°C Discharge: -20-+60°C |
| Max. Charge Current (A) | 150A | 150A | 150A | 100A | 100A | 100A |
| Max. Discharge Current (A) | 150A | 150A | 150A | 150A | 150A | 200A |
| Dimension (mm) | 485*475*180mm | 796*485*180mm | 796*485*180mm | 442*500*155mm | 442*680*222mm | 522*240*218mm |
| IP Grade | IP54 | IP54 | IP54 | IP54 | IP54 | IP54 |
| Communication | RS232, RS485, CAN | RS232, RS485, CAN | RS232, RS485, CAN | |||
| Certifications | CE, ROHS, UN38.3, MSDS | CE, ROHS, UN38.3, MSDS | CE, ROHS, UN38.3, MSDS | CE, ROHS, UN38.3, MSDS | CE, ROHS, UN38.3, MSDS | CE, ROHS, UN38.3, MSDS |
Suitable for long-term charge and discharge cycles, can meet the needs of frequent use, ensure stable power supply, and the service life can be up to more than 8 years.

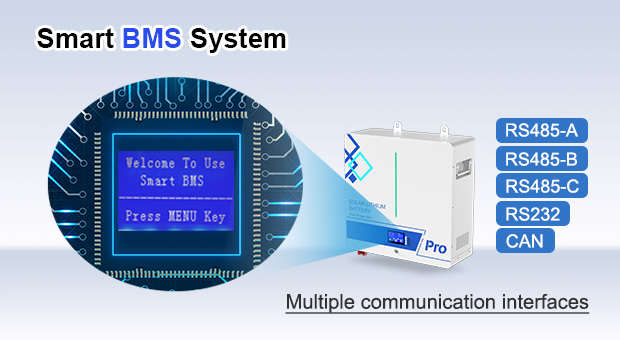

Equipped with built-in Battery Management System (BMS) technology, it provides protection against overcharging, over-discharging, short circuits, and overheating, ensuring safe and stable operation.

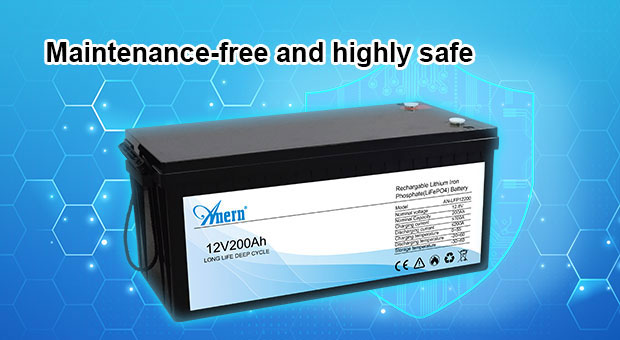

This solar battery is a chemically stable maintenance-free battery with the characteristics of high temperature resistance and high safety.
Suitable for a variety of application scenarios, such as data centers, telecommunications rooms, and whole-house backup systems, etc.
With a high energy storage capacity, the 200Ah lithium batteries can store more energy, making them ideal for large-scale solar systems that require substantial energy storage.

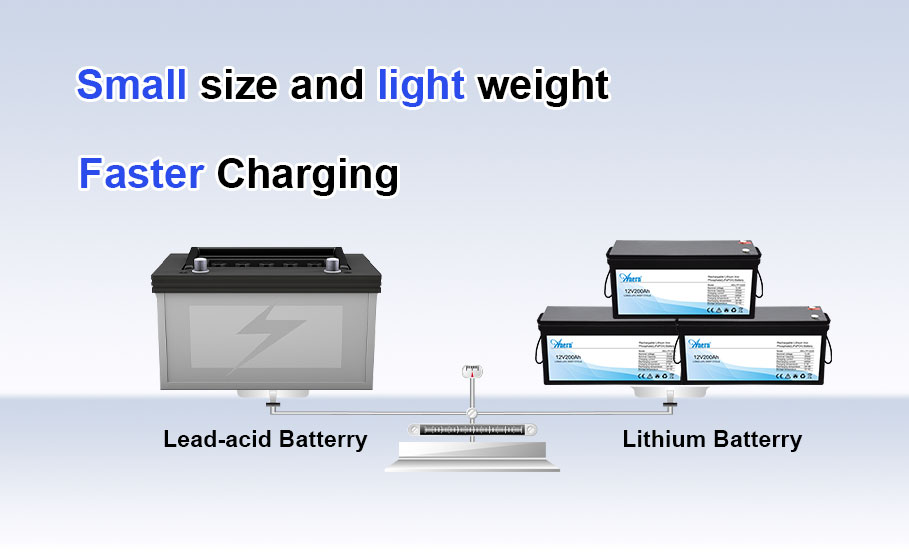

Lithium batteries can charge significantly faster than lead-acid batteries, which is essential for large-scale solar systems that require quick energy storage. A lithium battery can be fully charged in a fraction of the time it would take a traditional battery to reach full charge, allowing the system to be ready to deliver power when it's needed.
The lithium solar battery 200Ah is compact and lightweight compared to traditional lead-acid batteries. Despite the large energy storage capacity, the batteries are much smaller in size and weigh significantly less, which makes them ideal for installations where space is limited.
Lithium batteries are also less prone to risks such as leaks, acid spills, or thermal runaway, which can occur with traditional lead-acid batteries. This makes them a safer choice for large-scale solar systems, providing peace of mind to system owners and operators.
LiFePO4 200Ah batteries are an environmentally conscious choice for large-scale solar power systems. Unlike lead-acid batteries, which contain harmful chemicals like sulfuric acid, lithium batteries are recyclable and do not pose the same environmental hazards.
Lithium batteries generally have a higher energy density compared to other types of batteries like lead-acid. This means that a lithium battery 200 Ah can store more energy in a smaller, lighter package. For a solar system, this translates to more usable energy storage without taking up as much physical space.
Lithium batteries can last for 5,000 to 7,000 cycles, which means fewer replacements over time, making them more cost-effective in the long run. Additionally, because the battery can handle many charge and discharge cycles, it keeps your solar storage system operating at optimal performance for many years.
Lithium batteries can charge faster than other types of batteries, meaning your system can recover energy from your solar panels more quickly during daylight hours. This is particularly useful in regions where sunlight is intermittent, as the faster charging rate ensures you can store more energy in a shorter period.
Lithium batteries generally have better charge/discharge efficiency (around 95%) compared to lead-acid batteries. This means less energy is lost during the conversion process, making the system more efficient overall. For example, with a lithium 200 ah battery, you’ll lose much less energy when converting between solar power and battery storage, maximizing the use of your solar power.
Our battery lithium 200ah comes with a Battery Management System (BMS), which helps monitor the state of charge, temperature, and health of the battery. The BMS ensures that the battery operates within optimal parameters, preventing overcharging, deep discharging, and overheating, which could otherwise degrade its performance and lifespan.
A 200Ah lithium battery typically lasts between 5 to 10 years, depending on how it’s used and maintained. This lifespan far exceeds that of lead-acid batteries, which usually last only 3 to 5 years.
Depth of Discharge (DoD): Frequently discharging the battery to very low levels can speed up wear and tear. Keeping the discharge level moderate helps extend its lifespan.
Charge and Discharge Rates: High charging or discharging rates generate heat and put extra strain on the battery, accelerating degradation. To preserve longevity, it’s important to use appropriate charge and discharge rates.
Temperature: Elevated temperatures can cause chemical reactions inside the battery, which can increase the rate of capacity loss. Keeping the battery within an optimal temperature range is crucial.
Battery Management System (BMS): A good BMS oversees the charging and discharging processes, ensuring the battery operates within safe parameters and protecting it from damaging conditions.
By taking these factors into account, users can maximize the lifespan of their lithium ion 200ah battery, ensuring it remains a reliable power source for many years.
